本公司生產近30類，計140多種攪拌器，從最常見的（包括已有的HB5標準，SB90標準各種攪拌器）到各種復雜形狀或特殊用途的攪拌器?？砂碒/T2123-91標準的各種規格尺寸系列制造，也可根據用戶生產工藝需求，代為設計制造各種特殊要求、特殊規格或特殊用途的攪拌器。
攪拌器型號標注方法：
材料代號
攪拌器軸孔徑
攪拌器的外徑，
攪拌器型式代號
六斜葉開啟渦輪式攪拌器
六斜葉整體開啟渦輪式XK、六斜葉可拆開啟渦輪式XKK、六斜葉穩定環開啟渦輪式XKW、六斜窄葉整體開啟渦輪式XZK、六斜窄葉可拆開啟渦輪式XKZ、六斜窄葉穩定開啟渦輪式XZW
本類攪拌器與直葉開啟渦輪式比較，除有徑向流外有軸向分流，剪切性能介于直葉和彎葉之間，所以它具有較優的綜合性能、分散、固體、懸浮、固體溶解都較適合，其它過程也能應用，運作條件同六直葉開啟渦輪。

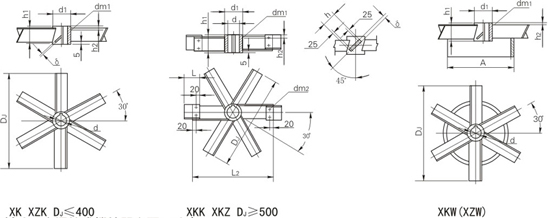

斜葉開啟渦輪式攪拌器主要尺寸表
DJ
d
d1
h2
A
L
L2
dm1/dm2
寬形
窄形
δ
寬形重量
窄形重量
h
h1
N/n≤
h
h1
N/n≤
碳鋼/不銹鋼
150
30
55
12
100
-
-
M12/-
30
55
0.008
20
50
0.0035
6/5
1.1/1.05
0.924/0.914
35
60
1.1/1.05
0.1/0.994
200
30
55
12
140
-
-
M12/-
40
60
0.008
25
55
0.0045
6/5
1.55/1.42
1.233/1.186
40
60
1.57/1.44
1.19/1.142
250
35
55
12
170
-
-
M12/-
50
70
0.011
30
55
0.008
6/5
2.67/2.44
1.438/1.338
40
70
2.68/2.47
1.946/1.868
300
40
70
12
200
-
-
M12/-
60
76
0.018
40
70
0.015
8/5
4.23/3.22
3.12/2.562
45
75
4.26/3.29
3.25/2.689
50
80
4.33/3.37
3.379/2.834
400
45
80
12
270
-
-
M12/-
80
90
0.031
50
80
0.025
8/6
7.3/6.1
5.125/4.506
50
85
7.37/6.18
5.297/4.686
55
90
7.54/6.37
5.469/4.867
500
60
95
16
340
100
380
M16/-M12
100
106
0.089
65
95
0.06
10/8
13.96/11.92
9.301/8.267
65
100
14.1/12.06
9.505/8.481
70
105
14.17/12.17
9.710/8.696
600
65
105
16
400
130
420
M16/-M12
120
120
0.11
75
100
0.08
12/10
23.35/20.34
14.578/13.111
70
110
23.42/20.44
14.825/13.371
80
120
23.66/20.74
15.318/13.888
700
70
115
16
470
180
420
M16/-M12
140
140
0.15
90
110
0.1
12/10
31.75/27.7
20.271/18.193
80
120
32.33/28.3
20.881/18.834
90
135
32.36/28.47
21.492/19.475
800
75
120
18
540
200
480
M16/-M12
160
160
0.23
100
120
0.18
14/12
42.97/39.93
27.91/26.08
85
140
46.53/43.66
30.58/28.87
95
160
49.74/47.00
32.96/31.38
900
80
130
18
600
250
480
M16/-M12
180
180
0.26
115
130
0.21
14/12
55.69/51.25
35.96/33.62
90
150
60.02/55.58
39.08/36.9
100
160
61.20/56.76
39.94/37.8
1000
90
150
18
670
300
480
M16/-M12
200
200
0.29
125
150
0.23
14/12
72.48/67.96
42.52/44.16
100
160
73.79/69.34
48.5/45.86
110
180
79.75/75.6
52.97/50.55
1120
100
160
20
750
360
480
M18/M16
225
225
0.43
140
160
0.34
16/14
99.93/94.65
64.34/61.08
110
180
106.6/101.7
69.11/66.09
120
190
108.6/103.7
70.49/67.54
1250
110
180
20
840
430
480
M18/M16
250
250
0.47
160
180
0.38
16/14
130.2/123.8
84.33/80.54
120
190
132.3/126.1
85.88/82.17
130
200
134.5/128.3
87.44/83.8
1400
120
190
20
940
500
480
M18/M16
280
280
0.53
175
196
0.42
16/14
163/154.8
103.9/98.87
130
200
165.5/157.3
105.5/100.5
140
210
167.9/159.9
107.2/102.3
1600
130
200
25
1070
300
480
M18/M16
320
320
0.77
200
200
0.62
18/16
232.8/222.6
145.5/137.7
140
210
235.5/225.5
147.2/140.9
150
220
238.3/228.4
148.9/142.7
1800
140
210
25
1200
720
480
M18/M16
360
360
0.86
225
210
0.69
18/16
294/283.8
181.5/171.5
150
220
297.1/287
183.3/175
160
240
310.7/301.3
191.2/183.3
2000
150
220
25
1340
820
480
M20/M18
400
400
0.96
250
240
0.77
18/16
363.8/344.4
224.9/214.4
160
240
378.8/360.2
233.9/223.9
170
250
382.7/364.3
236.3/226.4
2240
160
240
30
1500
940
480
M20/M18
450
450
1.32
280
260
1.1
20/18
508.7/489.9
313.7/301.8
170
250
513.1/494.6
316.3/304.5
180
260
517.5/499.3
318.9/307.2
2500
170
250
30
1670
1070
480
M20/M18
500
500
1.47
315
280
1.18
20/18
631.1/607.2
387.7/372.2
180
260
636/612.4
390.5/375.4
190
270
641/617.6
393.2/378.3
備注：攪拌器內孔可根據用戶要求制作，輪轂高度一般與內孔相一致。
本公司生產近30類，計140多種攪拌器，從最常見的（包括已有的HB5標準，SB90標準各種攪拌器）到各種復雜形狀或特殊用途的攪拌器?？砂碒/T2123-91標準的各種規格尺寸系列制造，也可根據用戶生產工藝需求，代為設計制造各種特殊要求、特殊規格或特殊用途的攪拌器。
攪拌器型號標注方法：
材料代號
攪拌器軸孔徑
攪拌器的外徑，
攪拌器型式代號
六斜葉開啟渦輪式攪拌器
六斜葉整體開啟渦輪式XK、六斜葉可拆開啟渦輪式XKK、六斜葉穩定環開啟渦輪式XKW、六斜窄葉整體開啟渦輪式XZK、六斜窄葉可拆開啟渦輪式XKZ、六斜窄葉穩定開啟渦輪式XZW
本類攪拌器與直葉開啟渦輪式比較，除有徑向流外有軸向分流，剪切性能介于直葉和彎葉之間，所以它具有較優的綜合性能、分散、固體、懸浮、固體溶解都較適合，其它過程也能應用，運作條件同六直葉開啟渦輪。
斜葉開啟渦輪式攪拌器主要尺寸表
DJ
d
d1
h2
A
L
L2
dm1/dm2
寬形
窄形
δ
寬形重量
窄形重量
h
h1
N/n≤
h
h1
N/n≤
碳鋼/不銹鋼
150
30
55
12
100
-
-
M12/-
30
55
0.008
20
50
0.0035
6/5
1.1/1.05
0.924/0.914
35
60
1.1/1.05
0.1/0.994
200
30
55
12
140
-
-
M12/-
40
60
0.008
25
55
0.0045
6/5
1.55/1.42
1.233/1.186
40
60
1.57/1.44
1.19/1.142
250
35
55
12
170
-
-
M12/-
50
70
0.011
30
55
0.008
6/5
2.67/2.44
1.438/1.338
40
70
2.68/2.47
1.946/1.868
300
40
70
12
200
-
-
M12/-
60
76
0.018
40
70
0.015
8/5
4.23/3.22
3.12/2.562
45
75
4.26/3.29
3.25/2.689
50
80
4.33/3.37
3.379/2.834
400
45
80
12
270
-
-
M12/-
80
90
0.031
50
80
0.025
8/6
7.3/6.1
5.125/4.506
50
85
7.37/6.18
5.297/4.686
55
90
7.54/6.37
5.469/4.867
500
60
95
16
340
100
380
M16/-M12
100
106
0.089
65
95
0.06
10/8
13.96/11.92
9.301/8.267
65
100
14.1/12.06
9.505/8.481
70
105
14.17/12.17
9.710/8.696
600
65
105
16
400
130
420
M16/-M12
120
120
0.11
75
100
0.08
12/10
23.35/20.34
14.578/13.111
70
110
23.42/20.44
14.825/13.371
80
120
23.66/20.74
15.318/13.888
700
70
115
16
470
180
420
M16/-M12
140
140
0.15
90
110
0.1
12/10
31.75/27.7
20.271/18.193
80
120
32.33/28.3
20.881/18.834
90
135
32.36/28.47
21.492/19.475
800
75
120
18
540
200
480
M16/-M12
160
160
0.23
100
120
0.18
14/12
42.97/39.93
27.91/26.08
85
140
46.53/43.66
30.58/28.87
95
160
49.74/47.00
32.96/31.38
900
80
130
18
600
250
480
M16/-M12
180
180
0.26
115
130
0.21
14/12
55.69/51.25
35.96/33.62
90
150
60.02/55.58
39.08/36.9
100
160
61.20/56.76
39.94/37.8
1000
90
150
18
670
300
480
M16/-M12
200
200
0.29
125
150
0.23
14/12
72.48/67.96
42.52/44.16
100
160
73.79/69.34
48.5/45.86
110
180
79.75/75.6
52.97/50.55
1120
100
160
20
750
360
480
M18/M16
225
225
0.43
140
160
0.34
16/14
99.93/94.65
64.34/61.08
110
180
106.6/101.7
69.11/66.09
120
190
108.6/103.7
70.49/67.54
1250
110
180
20
840
430
480
M18/M16
250
250
0.47
160
180
0.38
16/14
130.2/123.8
84.33/80.54
120
190
132.3/126.1
85.88/82.17
130
200
134.5/128.3
87.44/83.8
1400
120
190
20
940
500
480
M18/M16
280
280
0.53
175
196
0.42
16/14
163/154.8
103.9/98.87
130
200
165.5/157.3
105.5/100.5
140
210
167.9/159.9
107.2/102.3
1600
130
200
25
1070
300
480
M18/M16
320
320
0.77
200
200
0.62
18/16
232.8/222.6
145.5/137.7
140
210
235.5/225.5
147.2/140.9
150
220
238.3/228.4
148.9/142.7
1800
140
210
25
1200
720
480
M18/M16
360
360
0.86
225
210
0.69
18/16
294/283.8
181.5/171.5
150
220
297.1/287
183.3/175
160
240
310.7/301.3
191.2/183.3
2000
150
220
25
1340
820
480
M20/M18
400
400
0.96
250
240
0.77
18/16
363.8/344.4
224.9/214.4
160
240
378.8/360.2
233.9/223.9
170
250
382.7/364.3
236.3/226.4
2240
160
240
30
1500
940
480
M20/M18
450
450
1.32
280
260
1.1
20/18
508.7/489.9
313.7/301.8
170
250
513.1/494.6
316.3/304.5
180
260
517.5/499.3
318.9/307.2
2500
170
250
30
1670
1070
480
M20/M18
500
500
1.47
315
280
1.18
20/18
631.1/607.2
387.7/372.2
180
260
636/612.4
390.5/375.4
190
270
641/617.6
393.2/378.3
備注：攪拌器內孔可根據用戶要求制作，輪轂高度一般與內孔相一致。
本公司生產近30類，計140多種攪拌器，從最常見的（包括已有的HB5標準，SB90標準各種攪拌器）到各種復雜形狀或特殊用途的攪拌器?？砂碒/T2123-91標準的各種規格尺寸系列制造，也可根據用戶生產工藝需求，代為設計制造各種特殊要求、特殊規格或特殊用途的攪拌器。
攪拌器型號標注方法：
|
|
|
| 材料代號 | |
| 攪拌器軸孔徑 | |
| 攪拌器的外徑， | |
| 攪拌器型式代號 |
六斜葉開啟渦輪式攪拌器
六斜葉整體開啟渦輪式XK、六斜葉可拆開啟渦輪式XKK、六斜葉穩定環開啟渦輪式XKW、六斜窄葉整體開啟渦輪式XZK、六斜窄葉可拆開啟渦輪式XKZ、六斜窄葉穩定開啟渦輪式XZW
本類攪拌器與直葉開啟渦輪式比較，除有徑向流外有軸向分流，剪切性能介于直葉和彎葉之間，所以它具有較優的綜合性能、分散、固體、懸浮、固體溶解都較適合，其它過程也能應用，運作條件同六直葉開啟渦輪。
斜葉開啟渦輪式攪拌器主要尺寸表
| DJ | d | d1 | h2 | A | L | L2 | dm1/dm2 | 寬形 | 窄形 | δ | 寬形重量 | 窄形重量 | ||||
| h | h1 | N/n≤ | h | h1 | N/n≤ | 碳鋼/不銹鋼 | ||||||||||
| 150 | 30 | 55 | 12 | 100 | - | - | M12/- | 30 | 55 | 0.008 | 20 | 50 | 0.0035 | 6/5 | 1.1/1.05 | 0.924/0.914 |
| 35 | 60 | 1.1/1.05 | 0.1/0.994 | |||||||||||||
| 200 | 30 | 55 | 12 | 140 | - | - | M12/- | 40 | 60 | 0.008 | 25 | 55 | 0.0045 | 6/5 | 1.55/1.42 | 1.233/1.186 |
| 40 | 60 | 1.57/1.44 | 1.19/1.142 | |||||||||||||
| 250 | 35 | 55 | 12 | 170 | - | - | M12/- | 50 | 70 | 0.011 | 30 | 55 | 0.008 | 6/5 | 2.67/2.44 | 1.438/1.338 |
| 40 | 70 | 2.68/2.47 | 1.946/1.868 | |||||||||||||
| 300 | 40 | 70 | 12 | 200 | - | - | M12/- | 60 | 76 | 0.018 | 40 | 70 | 0.015 | 8/5 | 4.23/3.22 | 3.12/2.562 |
| 45 | 75 | 4.26/3.29 | 3.25/2.689 | |||||||||||||
| 50 | 80 | 4.33/3.37 | 3.379/2.834 | |||||||||||||
| 400 | 45 | 80 | 12 | 270 | - | - | M12/- | 80 | 90 | 0.031 | 50 | 80 | 0.025 | 8/6 | 7.3/6.1 | 5.125/4.506 |
| 50 | 85 | 7.37/6.18 | 5.297/4.686 | |||||||||||||
| 55 | 90 | 7.54/6.37 | 5.469/4.867 | |||||||||||||
| 500 | 60 | 95 | 16 | 340 | 100 | 380 | M16/-M12 | 100 | 106 | 0.089 | 65 | 95 | 0.06 | 10/8 | 13.96/11.92 | 9.301/8.267 |
| 65 | 100 | 14.1/12.06 | 9.505/8.481 | |||||||||||||
| 70 | 105 | 14.17/12.17 | 9.710/8.696 | |||||||||||||
| 600 | 65 | 105 | 16 | 400 | 130 | 420 | M16/-M12 | 120 | 120 | 0.11 | 75 | 100 | 0.08 | 12/10 | 23.35/20.34 | 14.578/13.111 |
| 70 | 110 | 23.42/20.44 | 14.825/13.371 | |||||||||||||
| 80 | 120 | 23.66/20.74 | 15.318/13.888 | |||||||||||||
| 700 | 70 | 115 | 16 | 470 | 180 | 420 | M16/-M12 | 140 | 140 | 0.15 | 90 | 110 | 0.1 | 12/10 | 31.75/27.7 | 20.271/18.193 |
| 80 | 120 | 32.33/28.3 | 20.881/18.834 | |||||||||||||
| 90 | 135 | 32.36/28.47 | 21.492/19.475 | |||||||||||||
| 800 | 75 | 120 | 18 | 540 | 200 | 480 | M16/-M12 | 160 | 160 | 0.23 | 100 | 120 | 0.18 | 14/12 | 42.97/39.93 | 27.91/26.08 |
| 85 | 140 | 46.53/43.66 | 30.58/28.87 | |||||||||||||
| 95 | 160 | 49.74/47.00 | 32.96/31.38 | |||||||||||||
| 900 | 80 | 130 | 18 | 600 | 250 | 480 | M16/-M12 | 180 | 180 | 0.26 | 115 | 130 | 0.21 | 14/12 | 55.69/51.25 | 35.96/33.62 |
| 90 | 150 | 60.02/55.58 | 39.08/36.9 | |||||||||||||
| 100 | 160 | 61.20/56.76 | 39.94/37.8 | |||||||||||||
| 1000 | 90 | 150 | 18 | 670 | 300 | 480 | M16/-M12 | 200 | 200 | 0.29 | 125 | 150 | 0.23 | 14/12 | 72.48/67.96 | 42.52/44.16 |
| 100 | 160 | 73.79/69.34 | 48.5/45.86 | |||||||||||||
| 110 | 180 | 79.75/75.6 | 52.97/50.55 | |||||||||||||
| 1120 | 100 | 160 | 20 | 750 | 360 | 480 | M18/M16 | 225 | 225 | 0.43 | 140 | 160 | 0.34 | 16/14 | 99.93/94.65 | 64.34/61.08 |
| 110 | 180 | 106.6/101.7 | 69.11/66.09 | |||||||||||||
| 120 | 190 | 108.6/103.7 | 70.49/67.54 | |||||||||||||
| 1250 | 110 | 180 | 20 | 840 | 430 | 480 | M18/M16 | 250 | 250 | 0.47 | 160 | 180 | 0.38 | 16/14 | 130.2/123.8 | 84.33/80.54 |
| 120 | 190 | 132.3/126.1 | 85.88/82.17 | |||||||||||||
| 130 | 200 | 134.5/128.3 | 87.44/83.8 | |||||||||||||
| 1400 | 120 | 190 | 20 | 940 | 500 | 480 | M18/M16 | 280 | 280 | 0.53 | 175 | 196 | 0.42 | 16/14 | 163/154.8 | 103.9/98.87 |
| 130 | 200 | 165.5/157.3 | 105.5/100.5 | |||||||||||||
| 140 | 210 | 167.9/159.9 | 107.2/102.3 | |||||||||||||
| 1600 | 130 | 200 | 25 | 1070 | 300 | 480 | M18/M16 | 320 | 320 | 0.77 | 200 | 200 | 0.62 | 18/16 | 232.8/222.6 | 145.5/137.7 |
| 140 | 210 | 235.5/225.5 | 147.2/140.9 | |||||||||||||
| 150 | 220 | 238.3/228.4 | 148.9/142.7 | |||||||||||||
| 1800 | 140 | 210 | 25 | 1200 | 720 | 480 | M18/M16 | 360 | 360 | 0.86 | 225 | 210 | 0.69 | 18/16 | 294/283.8 | 181.5/171.5 |
| 150 | 220 | 297.1/287 | 183.3/175 | |||||||||||||
| 160 | 240 | 310.7/301.3 | 191.2/183.3 | |||||||||||||
| 2000 | 150 | 220 | 25 | 1340 | 820 | 480 | M20/M18 | 400 | 400 | 0.96 | 250 | 240 | 0.77 | 18/16 | 363.8/344.4 | 224.9/214.4 |
| 160 | 240 | 378.8/360.2 | 233.9/223.9 | |||||||||||||
| 170 | 250 | 382.7/364.3 | 236.3/226.4 | |||||||||||||
| 2240 | 160 | 240 | 30 | 1500 | 940 | 480 | M20/M18 | 450 | 450 | 1.32 | 280 | 260 | 1.1 | 20/18 | 508.7/489.9 | 313.7/301.8 |
| 170 | 250 | 513.1/494.6 | 316.3/304.5 | |||||||||||||
| 180 | 260 | 517.5/499.3 | 318.9/307.2 | |||||||||||||
| 2500 | 170 | 250 | 30 | 1670 | 1070 | 480 | M20/M18 | 500 | 500 | 1.47 | 315 | 280 | 1.18 | 20/18 | 631.1/607.2 | 387.7/372.2 |
| 180 | 260 | 636/612.4 | 390.5/375.4 | |||||||||||||
| 190 | 270 | 641/617.6 | 393.2/378.3 | |||||||||||||
備注：攪拌器內孔可根據用戶要求制作，輪轂高度一般與內孔相一致。
-
本公司生產近30類，計140多種攪拌器，從最常見的（包括已有的HB5標準，SB90標準各種攪拌器）到各種復雜形狀或特殊用途的攪拌器?？砂碒/T2123-91標準的各種規格尺寸系列制造，也可根據用戶生產工藝需求，代為設計制造各種特殊要求、特殊規格或特殊用途的攪拌器。
攪拌器型號標注方法：
|
|
|
| 材料代號 | |
| 攪拌器軸孔徑 | |
| 攪拌器的外徑， | |
| 攪拌器型式代號 |
六斜葉開啟渦輪式攪拌器
六斜葉整體開啟渦輪式XK、六斜葉可拆開啟渦輪式XKK、六斜葉穩定環開啟渦輪式XKW、六斜窄葉整體開啟渦輪式XZK、六斜窄葉可拆開啟渦輪式XKZ、六斜窄葉穩定開啟渦輪式XZW
本類攪拌器與直葉開啟渦輪式比較，除有徑向流外有軸向分流，剪切性能介于直葉和彎葉之間，所以它具有較優的綜合性能、分散、固體、懸浮、固體溶解都較適合，其它過程也能應用，運作條件同六直葉開啟渦輪。
斜葉開啟渦輪式攪拌器主要尺寸表
| DJ | d | d1 | h2 | A | L | L2 | dm1/dm2 | 寬形 | 窄形 | δ | 寬形重量 | 窄形重量 | ||||
| h | h1 | N/n≤ | h | h1 | N/n≤ | 碳鋼/不銹鋼 | ||||||||||
| 150 | 30 | 55 | 12 | 100 | - | - | M12/- | 30 | 55 | 0.008 | 20 | 50 | 0.0035 | 6/5 | 1.1/1.05 | 0.924/0.914 |
| 35 | 60 | 1.1/1.05 | 0.1/0.994 | |||||||||||||
| 200 | 30 | 55 | 12 | 140 | - | - | M12/- | 40 | 60 | 0.008 | 25 | 55 | 0.0045 | 6/5 | 1.55/1.42 | 1.233/1.186 |
| 40 | 60 | 1.57/1.44 | 1.19/1.142 | |||||||||||||
| 250 | 35 | 55 | 12 | 170 | - | - | M12/- | 50 | 70 | 0.011 | 30 | 55 | 0.008 | 6/5 | 2.67/2.44 | 1.438/1.338 |
| 40 | 70 | 2.68/2.47 | 1.946/1.868 | |||||||||||||
| 300 | 40 | 70 | 12 | 200 | - | - | M12/- | 60 | 76 | 0.018 | 40 | 70 | 0.015 | 8/5 | 4.23/3.22 | 3.12/2.562 |
| 45 | 75 | 4.26/3.29 | 3.25/2.689 | |||||||||||||
| 50 | 80 | 4.33/3.37 | 3.379/2.834 | |||||||||||||
| 400 | 45 | 80 | 12 | 270 | - | - | M12/- | 80 | 90 | 0.031 | 50 | 80 | 0.025 | 8/6 | 7.3/6.1 | 5.125/4.506 |
| 50 | 85 | 7.37/6.18 | 5.297/4.686 | |||||||||||||
| 55 | 90 | 7.54/6.37 | 5.469/4.867 | |||||||||||||
| 500 | 60 | 95 | 16 | 340 | 100 | 380 | M16/-M12 | 100 | 106 | 0.089 | 65 | 95 | 0.06 | 10/8 | 13.96/11.92 | 9.301/8.267 |
| 65 | 100 | 14.1/12.06 | 9.505/8.481 | |||||||||||||
| 70 | 105 | 14.17/12.17 | 9.710/8.696 | |||||||||||||
| 600 | 65 | 105 | 16 | 400 | 130 | 420 | M16/-M12 | 120 | 120 | 0.11 | 75 | 100 | 0.08 | 12/10 | 23.35/20.34 | 14.578/13.111 |
| 70 | 110 | 23.42/20.44 | 14.825/13.371 | |||||||||||||
| 80 | 120 | 23.66/20.74 | 15.318/13.888 | |||||||||||||
| 700 | 70 | 115 | 16 | 470 | 180 | 420 | M16/-M12 | 140 | 140 | 0.15 | 90 | 110 | 0.1 | 12/10 | 31.75/27.7 | 20.271/18.193 |
| 80 | 120 | 32.33/28.3 | 20.881/18.834 | |||||||||||||
| 90 | 135 | 32.36/28.47 | 21.492/19.475 | |||||||||||||
| 800 | 75 | 120 | 18 | 540 | 200 | 480 | M16/-M12 | 160 | 160 | 0.23 | 100 | 120 | 0.18 | 14/12 | 42.97/39.93 | 27.91/26.08 |
| 85 | 140 | 46.53/43.66 | 30.58/28.87 | |||||||||||||
| 95 | 160 | 49.74/47.00 | 32.96/31.38 | |||||||||||||
| 900 | 80 | 130 | 18 | 600 | 250 | 480 | M16/-M12 | 180 | 180 | 0.26 | 115 | 130 | 0.21 | 14/12 | 55.69/51.25 | 35.96/33.62 |
| 90 | 150 | 60.02/55.58 | 39.08/36.9 | |||||||||||||
| 100 | 160 | 61.20/56.76 | 39.94/37.8 | |||||||||||||
| 1000 | 90 | 150 | 18 | 670 | 300 | 480 | M16/-M12 | 200 | 200 | 0.29 | 125 | 150 | 0.23 | 14/12 | 72.48/67.96 | 42.52/44.16 |
| 100 | 160 | 73.79/69.34 | 48.5/45.86 | |||||||||||||
| 110 | 180 | 79.75/75.6 | 52.97/50.55 | |||||||||||||
| 1120 | 100 | 160 | 20 | 750 | 360 | 480 | M18/M16 | 225 | 225 | 0.43 | 140 | 160 | 0.34 | 16/14 | 99.93/94.65 | 64.34/61.08 |
| 110 | 180 | 106.6/101.7 | 69.11/66.09 | |||||||||||||
| 120 | 190 | 108.6/103.7 | 70.49/67.54 | |||||||||||||
| 1250 | 110 | 180 | 20 | 840 | 430 | 480 | M18/M16 | 250 | 250 | 0.47 | 160 | 180 | 0.38 | 16/14 | 130.2/123.8 | 84.33/80.54 |
| 120 | 190 | 132.3/126.1 | 85.88/82.17 | |||||||||||||
| 130 | 200 | 134.5/128.3 | 87.44/83.8 | |||||||||||||
| 1400 | 120 | 190 | 20 | 940 | 500 | 480 | M18/M16 | 280 | 280 | 0.53 | 175 | 196 | 0.42 | 16/14 | 163/154.8 | 103.9/98.87 |
| 130 | 200 | 165.5/157.3 | 105.5/100.5 | |||||||||||||
| 140 | 210 | 167.9/159.9 | 107.2/102.3 | |||||||||||||
| 1600 | 130 | 200 | 25 | 1070 | 300 | 480 | M18/M16 | 320 | 320 | 0.77 | 200 | 200 | 0.62 | 18/16 | 232.8/222.6 | 145.5/137.7 |
| 140 | 210 | 235.5/225.5 | 147.2/140.9 | |||||||||||||
| 150 | 220 | 238.3/228.4 | 148.9/142.7 | |||||||||||||
| 1800 | 140 | 210 | 25 | 1200 | 720 | 480 | M18/M16 | 360 | 360 | 0.86 | 225 | 210 | 0.69 | 18/16 | 294/283.8 | 181.5/171.5 |
| 150 | 220 | 297.1/287 | 183.3/175 | |||||||||||||
| 160 | 240 | 310.7/301.3 | 191.2/183.3 | |||||||||||||
| 2000 | 150 | 220 | 25 | 1340 | 820 | 480 | M20/M18 | 400 | 400 | 0.96 | 250 | 240 | 0.77 | 18/16 | 363.8/344.4 | 224.9/214.4 |
| 160 | 240 | 378.8/360.2 | 233.9/223.9 | |||||||||||||
| 170 | 250 | 382.7/364.3 | 236.3/226.4 | |||||||||||||
| 2240 | 160 | 240 | 30 | 1500 | 940 | 480 | M20/M18 | 450 | 450 | 1.32 | 280 | 260 | 1.1 | 20/18 | 508.7/489.9 | 313.7/301.8 |
| 170 | 250 | 513.1/494.6 | 316.3/304.5 | |||||||||||||
| 180 | 260 | 517.5/499.3 | 318.9/307.2 | |||||||||||||
| 2500 | 170 | 250 | 30 | 1670 | 1070 | 480 | M20/M18 | 500 | 500 | 1.47 | 315 | 280 | 1.18 | 20/18 | 631.1/607.2 | 387.7/372.2 |
| 180 | 260 | 636/612.4 | 390.5/375.4 | |||||||||||||
| 190 | 270 | 641/617.6 | 393.2/378.3 | |||||||||||||
備注：攪拌器內孔可根據用戶要求制作，輪轂高度一般與內孔相一致。
