產品編號：11116115514

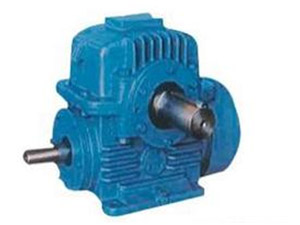

產品名稱：PWU平面二次包絡環面蝸桿減速機
產品類別：平面二次包絡環面蝸桿減速機
產品型號：PWU

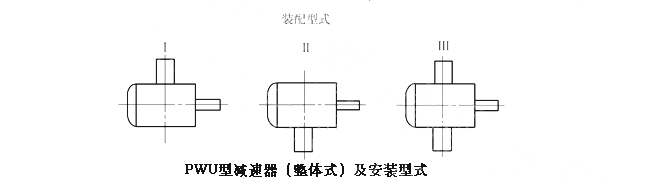

整體式PWU80、PWU100、PWU125、PWU140、PWU160、PWU180、PWU200、PWU225、PWU250、PWU280、PWU315、PWU355、型平面二次包絡環面蝸桿減速機主要尺寸（GB/T16449-1996）

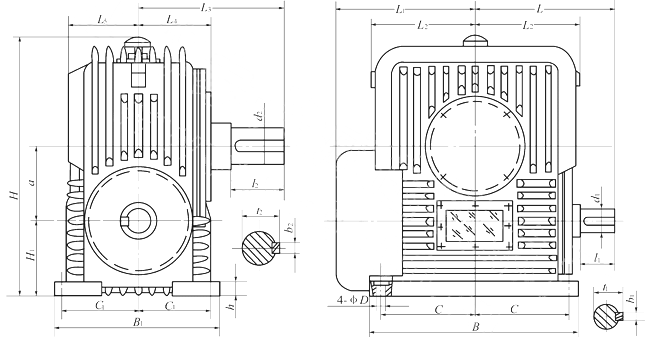

整體式PWU80-PWU355、型平面二次包絡環面蝸桿減速器主要尺寸

PWU型減速器主要尺寸（整體式）/mm a H1 B B1 C C1 D H L L1 L2 L3 L4 L5 d-1 b-1 t1 l1 d2 b2 t2 l2 h 80 100 250 190 112 80 14 315 160 160 125 180 100 90 25 8 28 42 45 14 48.5 82 30 100 112 300 236 130 100 16 355 200 200 160 212 125 118 32 10 35 58 55 16 59 82 35 125 125 355 280 160 125 18 450 236 236 190 250 150 140 38 10 41 58 65 18 69 105 38 140 140 400 315 180 140 20 500 265 265 212 280 160 160 42 12 45 82 70 20 74.5 105 40 160 160 450 355 200 160 21 560 300 300 236 315 190 180 48 14 51.5 82 80 22 85 130 42 180 180 500 400 225 180 22 630 335 335 265 355 212 200 56 16 60 82 90 25 95 130 45 200 200 560 450 250 200 24 710 355 355 300 400 236 224 60 18 64 105 100 28 106 165 50 225 225 630 500 280 225 26 800 400 400 315 450 265 250 65 18 69 105 110 28 116 165 53 250 250 670 530 300 250 28 850 450 450 355 500 280 280 70 20 74.5 105 125 32 132 165 56 280 280 800 600 355 280 30 950 475 475 400 560 315 315 85 22 90 130 140 36 148 200 60 315 315 900 670 375 315 32 1060 560 560 450 630 355 355 90 25 95 130 150 36 158 200 67 355 355 1000 750 425 355 35 1250 670 670 500 710 400 400 100 28 106 165 170 40 179 240 75

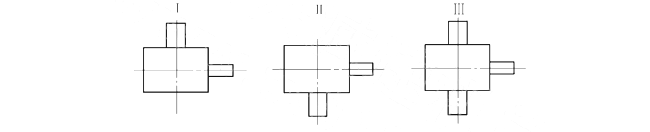

剖分式PWU400、PWU450、PWU500、PWU560、PWU630、PWU710、型平面二次包絡環面蝸桿減速機主要尺寸（GB/T16449-1996）

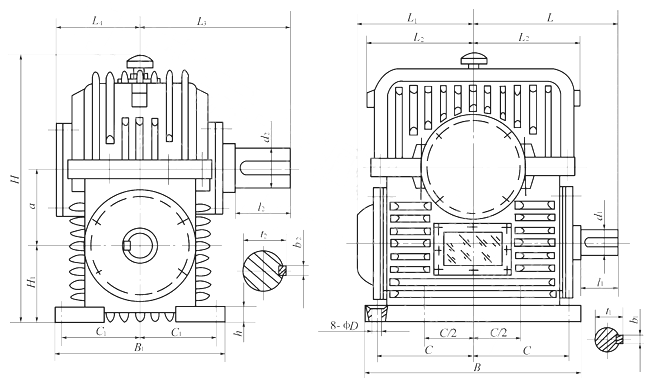

剖分式PWU400-PWU710、型平面二次包絡環面蝸桿減速器主要尺寸

PWU型減速器主要尺寸（剖分式） /mm a H1 B B1 C C1 D H L L1 L2 L3 L4 d-1 b-1 t1 l1 d2 b2 t2 l2 h 400 355 900 800 400 355 35 1250 600 600 450 630 375 110 28 116 165 180 45 190 240 55 450 400 1000 900 450 400 39 1400 670 670 500 710 425 125 32 132 165 200 45 210 280 60 500 450 1120 1000 500 450 42 1600 750 750 560 800 475 130 32 137 200 220 50 231 280 65 560 500 1250 1120 560 500 45 1800 850 850 630 900 530 150 36 158 200 250 56 262 330 72 630 560 1400 1250 630 560 48 2000 950 950 710 1000 600 170 40 179 240 280 63 292 380 80 710 630 1600 1400 710 630 52 2240 1060 1060 800 1250 670 190 45 200 280 320 70 334 380 88

剖分式PWU400、PWU450、PWU500、PWU560、PWU630、PWU710、型平面二次包絡環面蝸桿減速機主要尺寸（GB/T16449-1996）

公稱 傳動 比iN 輸入轉 速n1 r/min-1 功率 轉矩 中心距/mm 80 100 125 140 160 180 200 225 250 280 315 355 400 450 500 560 630 710 額定輸入功率P1/kW、額定輸出轉矩T2/N·m 10 1500 P1 T2 6.71 384 11.5 666 19.7 1141 25.9 1516 35.7 2093 47.5 2811 61.2 3626 81.4 4870 105 6280 138 8343 183 11087 245 14795 261 15787 347 20979 — — — — 1000 P1 T2 6.20 533 10.6 923 18.2 1581 23.9 2102 33.0 2901 43.9 3897 56.6 5025 75.2 6749 97.0 8703 127 11563 169 15366 226 20505 241 21881 320 29076 413 37495 543 49291 722 65499 963 87408 750 P1 T2 5.22 591 8.94 1019 15.3 1755 20.1 2333 27.8 3220 36.9 4326 47.6 5579 63.3 7494 81.6 9664 107 12842 143 17064 190 22772 203 24300 270 32290 348 41640 457 54740 608 72740 811 97071 500 P1 T2 4.20 697 7.20 1202 12.3 2071 16.2 2754 22.4 3801 29.7 5107 38.3 6586 50.9 8849 65.7 11412 86.3 15167 115 20145 153 26896 163 28700 217 38137 280 49181 368 64653 489 85913 652 114649 12.5 1500 P1 T2 5.88 417 10.1 722 17.3 1237 22.7 1645 31.3 2270 41.7 3066 53.7 3954 71.4 5311 92.0 6849 121 9100 161 12092 215 16137 229 17220 304 22882 392 29508 — — — 1000 P1 T2 5.26 558 9.00 968 15.4 1658 20.3 2204 28.0 3042 37.2 4109 48.0 5298 63.8 7117 82.2 9178 108 12194 144 16204 192 21624 205 23074 272 30661 351 39540 461 51980 612 69072 817 92176 750 P1 T2 4.31 604 7.39 1041 12.7 1794 16.7 2386 23.0 3293 30.5 4448 39.4 5737 52.3 7665 67.5 9884 88.7 13135 118 17454 157 23292 168 24854 223 33027 288 42591 378 55993 503 74401 671 99287 500 P1 T2 3.29 676 5.65 1166 9.67 2009 12.7 2672 17.6 3688 23.3 4956 30.1 6392 40.0 8589 51.5 11076 67.8 14722 90.0 19563 120 25819 128 27857 170 37018 220 47737 289 62755 384 83390 512 111283 14 1500 P1 T2 5.45 430 9.34 745 16.0 1277 21.0 1688 29.0 2330 38.6 3165 49.8 4082 66.1 5483 85.3 7070 112 9395 149 12484 199 16660 212 17777 282 23623 364 30463 478 40047 — — 1000 P1 T2 4.90 580 8.40 1005 14.4 1723 18.9 2277 26.1 3143 34.7 4269 44.8 5506 59.5 7396 76.7 9537 101 12673 134 16840 179 22472 191 23980 254 31865 327 41092 430 54020 571 71783 762 95793 750 P1 T2 4.00 620 6.85 1075 11.7 1853 15.4 2464 21.3 3401 28.3 4544 36.5 5860 48.5 7917 62.6 10209 82.3 13568 109 18029 146 24060 156 25674 207 34116 267 43995 351 57836 466 76854 622 102560 500 P1 T2 3.06 695 5.24 1205 8.98 2078 11.8 2761 16.3 3814 21.7 5097 27.9 6572 37.1 8833 47.8 11391 62.9 15143 83.6 20122 112 26852 119 28653 158 38075 204 49101 268 64548 356 85773 476 114463 16 1500 P1 T2 4.98 446 8.54 774 14.6 1326 19.2 1763 26.5 2433 35.3 3233 45.5 4169 60.4 5663 77.9 7303 102 9706 136 12897 182 17211 194 18365 258 24441 332 31470 437 41372 — — 1000 P1 T2 4.51 606 7.73 1051 13.2 1801 17.4 2394 24.0 3305 31.9 4391 41.2 5663 54.7 7692 70.6 9920 92.8 13183 123 17517 165 23377 176 24945 233 33147 301 42746 395 56194 525 74604 701 99648 750 P1 T2 3.65 643 6.25 1108 10.7 1920 14.1 2553 19.4 3524 25.8 4735 33.3 6106 44.3 8114 57.1 10464 75.0 14062 99.7 18685 133 24935 142 26608 189 35357 243 45595 320 59940 425 79650 567 106292 500 P1 T2 2.62 725 4.84 1250 8.29 2154 10.9 2865 15.0 3954 20.0 5316 25.8 6855 34.3 9214 44.2 11881 58.1 15797 77.2 20991 103 28013 110 29892 146 39721 188 52223 248 67338 329 89480 439 119410 18 1500 P1 T2 4.59 460 7.86 793 13.5 1359 17.7 1817 24.4 2508 32.5 3351 41.9 4321 55.7 5742 71.8 7405 94.4 9951 125 13223 167 17646 179 18829 237 25021 306 32266 402 42417 — — 1000 P1 T2 3.92 587 6.72 1017 11.5 1742 15.1 2316 20.9 3197 27.8 4296 35.8 5540 47.6 7362 61.4 9493 80.7 12757 107 16952 143 22623 153 24140 203 32078 262 41367 344 54381 457 72263 610 96434 750 P1 T2 3.29 646 5.65 1113 9.67 1929 12.7 2565 17.6 3540 23.3 4785 30.1 6170 40.0 8246 51.5 10633 67.8 13978 90.0 18574 120 24787 128 26743 170 35537 220 45827 289 60245 384 80055 512 106832 500 P1 T2 2.51 716 4.30 1235 7.37 2128 9.69 2831 13.4 3908 17.8 5254 22.9 6776 30.5 9109 39.3 11746 51.6 15620 68.6 20756 91.6 27698 97.7 29556 130 39275 167 50647 220 66582 292 88475 390 118068 20 1500 P1 T2 4.20 462 7.19 797 12.3 1365 16.2 1815 22.4 2505 29.7 3386 38.3 4367 50.9 5835 65.7 7524 86.3 9882 115 13144 153 17541 163 18925 217 25148 280 32431 368 42634 — — 1000 P1 T2 3.61 593 6.18 1021 10.6 1761 13.9 2341 19.2 3231 25.5 4367 32.9 5632 43.8 7525 56.5 9704 74.2 12757 98.6 16952 132 22623 140 24408 187 32434 241 41826 316 54985 420 73066 561 97505 750 P1 T2 2.98 641 5.11 1106 8.75 1917 11.5 2549 15.9 3519 21.1 4783 27.2 6168 36.2 8243 46.6 10629 61.3 14052 81.5 18672 109 24918 116 26598 154 35332 199 45563 261 59898 347 79594 463 106217 500 P1 T2 2.31 725 3.97 1250 6.79 2154 8.93 2866 12.3 3956 16.4 5320 21.1 6860 28.1 9223 36.2 11894 47.6 15817 63.2 21018 84.4 28049 90.1 29930 120 39772 154 51289 203 67425 270 89596 360 119564 22.4 1500 P1 T2 3.84 496 6.59 808 11.3 1384 14.8 1841 20.5 2541 27.2 3435 35.1 4429 46.6 5919 60.1 7633 79.1 10147 105 13483 140 17993 150 19200 199 25514 256 32902 337 43253 — — 1000 P1 T2 3.29 599 5.65 1039 9.67 1780 12.7 2367 17.6 3267 23.3 4416 30.1 5695 40.0 7610 51.5 9813 67.8 13046 90.0 17336 120 23134 128 24686 170 32803 220 42302 289 55611 384 73897 512 98614 750 P1 T2 2.75 654 4.70 1134 8.06 1943 10.6 2584 14.6 3567 19.4 4851 25.1 6256 33.3 8360 43.0 10781 56.5 14334 75.0 19048 100 25419 107 27124 142 36043 183 46480 241 61103 320 81195 427 108353 500 P1 T2 2.12 729 3.63 1258 6.22 2155 8.18 2868 11.3 3959 15.0 5325 19.3 6867 25.7 9234 33.1 11908 43.6 15935 57.9 21174 77.2 28257 82.4 30857 110 41004 141 52878 186 69513 247 92371 329 123268 25 1500 P1 T2 3.45 467 5.91 810 10.1 1387 13.3 1845 18.4 2546 24.4 3423 31.5 4414 41.9 5898 54.0 7606 71.0 10056 94.3 13363 126 17832 134 19028 178 25285 230 32607 303 42866 — — 1000 P1 T2 2.94 590 5.04 1023 8.64 1773 11.4 2358 15.7 3255 20.8 4376 26.9 5643 35.7 7541 4, 6.0 9724 60.5 1, , 2856 80.4 17083 107 22797 114 24326 152 32325 196 41685 258 54800 343 72819 457 97176 750 P1 T2 2.51 663 4.30 1143 7.37 1971 9.69 2622 13.4 3619 17.8 4865 22.9 6274 30.5 8434 39.3 10876 51.6 14463 68.6 19218 91.6 25646 97.7 27367 130 36365 167 46896 220 61650 292 81921 390 109323 500 P1 T2 1.88 710 3.23 1225 5.53 2112 7.27 2811 10.0 3880 13.3 5187 17.2 6689 22.8 9052 29.5 14091 38.7 15716 51.5 20883 68.7 27869 73.3 29738 97.4 39516 126 50959 165 66991 219 89019 293 118795 28 1500 P1 T2 3.10 453 5.31 786 9.10 1354 12.0 1791 16.5 2472 21.9 3324 28.3 4287 37.6 5763 48.7 7432 63.7 9940 84.7 13209 113 17627 121 18810 160 24995 207 32232 272 42373 — — 1000 P1 T2 2.71 593 4.64 1023 7.95 1764 10.4 2346 14.4 3239 19.2 4355 24.7 5616 32.8 7550 42.3 9737 55.7 13023 74.0 17306 98.7 23094 105 24643 140 32746 180 42229 237 55514 315 73768 421 98443 750 P1 T2 2.27 657 3.90 1133 6.68 1953 8.78 2589 12.1 3587 16.1 4823 20.8 6220 27.6 8364 35.6 10786 46.8 14346 62.2 19063 83.0 25439 88.5 27146 118 36072 152 46517 199 61152 265 81260 354 108441 500 P1 T2 1.80 743 3.09 1281 5.30 2196 6.96 2905 9.61 4010 12.8 5397 16.5 6959 21.9 9365 28.2 12077 37.1 16174 49.3 21492 65.8 28681 70.2 30604 93.3 40668 120 52444 158 68943 210 91613 280 122257 31.5 1500 P1 T2 2.78 447 4.77 770 8.18 1328 10.7 1768 14.8 2440 19.7 3282 25.4 4232 33.8 5691 43.6 7339 57.3 12974 76.1 12974 102 17313 108 18475 144 24550 186 31658 244 41618 — — 1000 P1 T2 2.43 585 4.17 1009 7.14 1740 9.39 2315 13.0 3196 17.2 4299 22.2 5543 29.5 7455 38.0 9614 50.0 12789 66.5 16994 88.7 22678 94.6 24199 126 32156 162 41468 213 54514 283 72440 378 96670 750 P1 T2 1.80 572 3.09 986 5.30 1700 6.96 2263 9.61 3123 12.8 4201 16.5 5418 21.9 7287 28.2 9397 37.1 12502 49.3 16613 65.8 22170 70.2 23657 93.3 31436 120 40539 158 53293 210 70818 280 94505 500 P1 T2 1.57 708 2.69 1221 4.61 2106 6.06 2787 8.36 3847 11.1 5146 14.3 6636 19.0 8932 24.5 11519 32.3 15337 42.9 20380 57.2 27196 61.1 29021 81.1 38563 105 49730 138 65376 183 86873 244 115930 35.5 1500 P1 T2 2.43 431 4.17 744 7.14 1283 9.39 1697 13.0 2343 17.2 3152 22.2 4065 29.5 5468 38.0 7051 50.0 9439 66.5 12543 88.7 16738 94.6 17861 126 23734 162 30606 213 40235 — — 1000 P1 T2 2.20 584 3.76 1008 6.45 1738 8.48 2299 11.7 3174 15.6 4270 20.0 5507 26.6 7408 34.4 9553 45.2 12788 60.0 16993 80.1 22677 85.5 24198 114 32155 146 41466 193 54512 256 72437 341 96666 750 P1 T2 1.88 655 3.23 1130 5.53 1949 7.27 2595 10.0 3582 13.3 4820 17.2 6216 22.8 8363 29.5 10784 38.7 14352 51.5 19072 68.7 25451 73.3 27158 97.4 36089 126 46539 165 61180 219 81298 293 108490 500 P1 T2 1.49 738 2.55 1273 4.38 2196 5.75 2906 7.94 4011 10.6 5402 13.6 6966 18.1 9318 23.3 12016 30.6 16108 40.7 21405 54.4 28565 58.0 30481 77.1 40503 99.4 52232 131 68665 174 91243 232 121762 40 1500 P1 T2 2.27 440 3.90 759 6.68 1310 8.78 1744 12.1 2408 16.1 3240 20.8 4178 27.6 5623 35.6 7251 46.8 9651 62.2 12825 83.0 17115 88.5 18263 118 24268 152 31295 199 41141 265 54669 — 1000 P1 T2 1.88 547 3.23 943 5.53 1626 7.27 2165 10.0 2989 13.3 4022 17.2 5187 22.8 6980 29.5 9001 38.7 11981 51.5 15920 68.7 21246 73.3 22671 97.4 30125 126 38849 165 51071 219 67864 293 90564 750 P1 T2 1.65 629 2.82 1085 4.84 1872 6.36 2494 8.78 3442 11.7 4633 15.0 5975 20.0 8041 25.8 10370 33.9 13805 45.0 18345 60.1 24481 64.1 26123 85.2 34712 110 44764 144 58847 192 78198 256 104354 500 P1 T2 1.22 659 2.08 1138 3.57 1964 4.69 2617 6.48 3613 8.61 4867 11.1 6276 14.8 8452 19.0 10900 25.0 14520 33.2 19295 44.3 25748 47.3 27475 62.9 36510 81.1 47082 107 61895 142 82247 189 109758 45 1500 P1 T2 2.04 435 3.49 751 5.99 1304 7.87 1737 10.9 2397 14.4 3227 18.6 4161 24.7 5600 31.9 7222 41.9 9614 55.7 12776 74.4 17049 79.4 18193 105 24175 136 31175 179 40983 238 54459 — 1000 P1 T2 1.76 565 3.02 975 5.18 1693 6.81 2293 9.40 3112 12.5 4189 16.1 5401 21.4 7270 27.6 9375 36.3 12480 48.2 16584 64.4 22131 68.7 23615 91.3 31381 118 40468 155 53199 206 70692 274 94338 750 P1 T2 1.57 661 2.69 1140 4.61 1966 6.06 2602 8.36 3592 11.1 4837 14.3 6238 19.0 8343 24.5 10759 32.3 14237 42.9 18918 57.2 25246 61.1 26939 81.1 35797 105 46163 138 60686 183 80641 244 107615 500 P1 T2 1.29 773 2.22 1334 3.80 2303 5.00 3069 6.90 4238 9.16 5712 11.8 7364 15.7 9852 20.2 12705 26.6 17046 35.4 22651 47.2 30227 50.4 32255 66.9 42861 86.3 55272 113 72661 151 96554 201 128849 50 1500 P1 T2 1.84 428 3.16 744 5.41 1275 7.12 1699 9.82 2345 13.1 3157 16.8 4072 22.4 5482 28.8 7069 37.9 9414 50.4 12510 87.2 16694 71.7 17814 95.3 23671 123 30525 162 40129 215 53324 — 1000 P1 T2 1.61 560 2.76 974 4.72 1668 6.21 2223 8.57 3068 11.4 4132 14.7 5328 19.5 7173 25.2 9250 33.1 12318 43.9 16369 58.6 21844 62.6 23309 83.2 30974 107 39943 141 52509 187 69776 250 93115 750 P1 T2 1.33 611 2.28 1055 3.92 1820 5.15 2425 7.10 3347 9.44 4508 12.2 5814 16.2 7828 20.9 10095 27.4 13446 36.4 17867 48.6 23843 51.9 25442 69.0 33808 88.9 43598 117 57315 155 76161 207 101636 500 P1 T2 1.02 662 1.74 1143 2.99 1973 3.94 2631 5.43 3632 7.22 4895 9.31 6313 12.4 8507 16.0 10970 21.0 14622 27.9 19430 37.2 25929 39.7 27668 52.7 36766 68.0 47412 89.4 62328 119 82823 159 110526 56 1500 P1 T2 1.69 430 2.89 747 4.95 1280 6.51 1706 8.99 2355 11.9 3172 15.4 4090 20.5 5471 26.4 7150 34.7 9523 46.1 12654 61.5 16887 65.6 18019 87.2 23944 112 30878 148 40592 196 53940 — 1000 P1 T2 1.45 555 2.49 964 4.26 1652 5.60 2202 7.73 3039 10.3 4094 13.2 5279 17.6 7062 22.7 9228 29.8 12291 39.7 16332 52.9 21795 56.5 23257 75.0 30905 96.8 39854 127 52393 169 69620 226 92907 750 P1 T2 1.33 670 2.28 1157 3.92 1996 5.14 2661 7.10 3673 9.44 4948 12.2 6381 16.2 8595 20.9 11083 27.4 14766 36.4 19621 48.6 24184 51.9 27940 69.0 37128 88.9 47879 117 62942 155 83639 207 111615 500 P1 T2 1.10 787 1.88 1359 3.22 2345 4.24 3106 5.85 4287 7.78 5780 10.0 7453 13.3 10118 17.2 13048 22.6 17274 30.0 22954 40.1 30631 42.7 32686 56.8 43434 73.2 56011 96.3 73633 128 97845 171, 130572 63 1500 P1 T2 1.49 418 2.55 727 4.38 1246 5.75 1661 7.94 2293 10.6 3090 13.6 3984 18.1 5367 23.3 6921 30.7 9221 40.7 12254 54.4 16352 58.0 17449 77.1 23187 99.4 29901 131 39308 174 52234 — 1000 P1 T2 1.33 562 2.28 976 3.92 1673 5.15 2230 7.10 3078 9.44 4147 12.2 5347 16.2 7203 20.9 9289 27.4 12376 36.4 16446 48.6 21946 51.9 23419 69.0 31119 88.9 40130 117 52756 155 70103 207 93551 750 P1 T2 1.22 673 2.08 1162 3.57 2005 4.69 2673 6.48 3690 8.61 4972 11.1 6412 14.8 8638 19.0 11279 25.0 14845 33.2 19726 44.3 26324 47.3 28090 62.9 37327 81.1 48135 107 63279 142 84087 189 112213 500 P1 T2 0.82 644 1.41 1112 2.42 1921 3.18 2563 4.39 3538 5.83 4771 7.52 6153 9.99 8297 12.9 10699 16.9 14269 22.5 18961 30.0 25303 32.1 27000 42.6 35879 54.9 46268 72.2 60824 96.0 80825 128 107859
